New Bulk Metal Alloy Shows a Large Elastic Limiting Strain Greater Than 4.3%

Most metal and alloys possess a high elastic strain rate at the micro level. But this changes when they are in their bulk shape, as they are for everyday engineering applications. Now, a research group has developed a bulk copper-based alloy boasting the largest tensile elastic strain at room temperature to date.

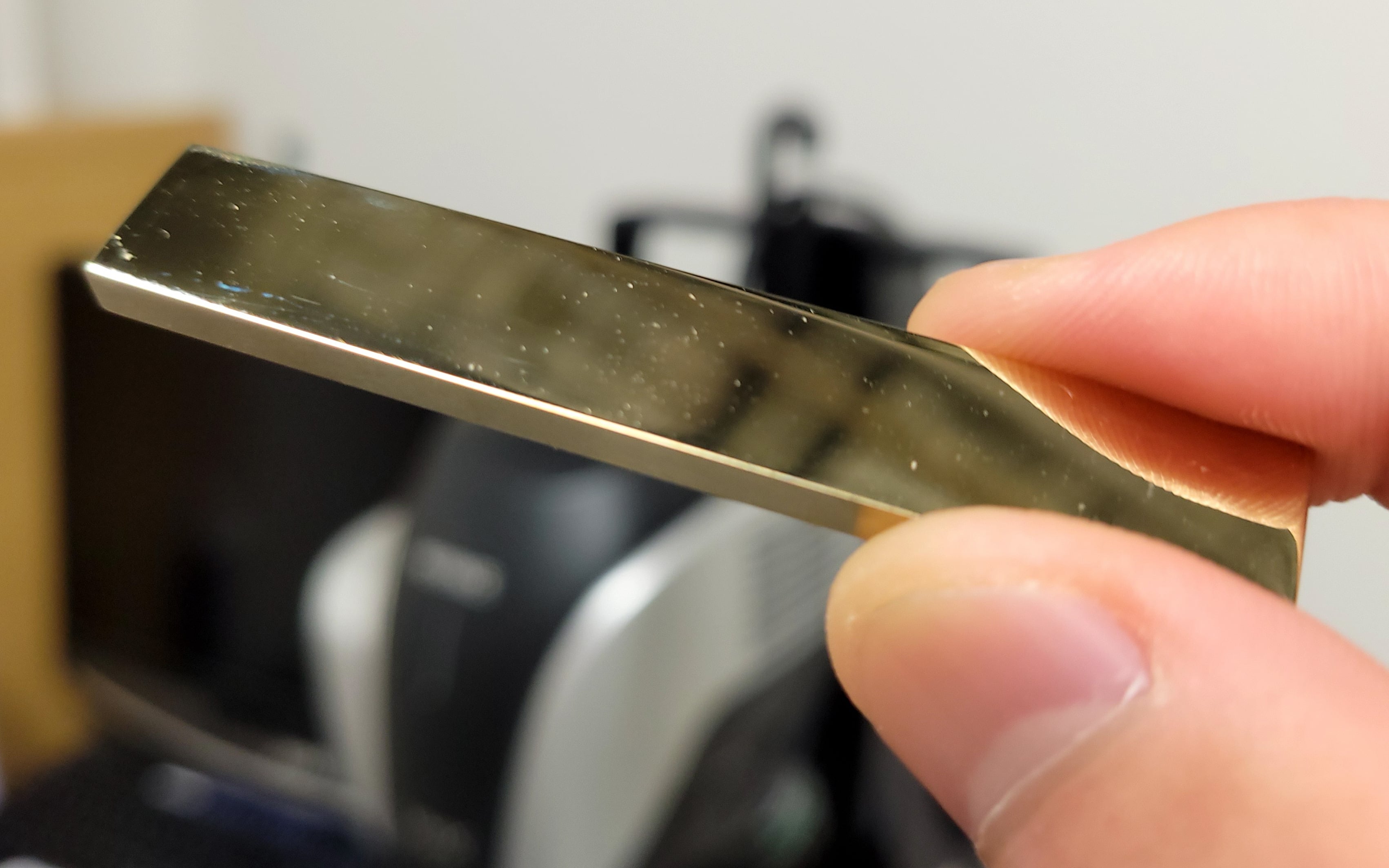

A bulk single crystal of the newly developed copper-based alloy.

A research group has developed a bulk copper-based alloy boasting the largest tensile elastic strain at room temperature to date.

Even when subjected to certain levels of stress, metals can spring back to their original shape on account of elasticity. Materials with large elastic deformation provide greater flexibility in everyday sporting goods and medical devices, and are thus highly sought after.

Theoretically, most metals and alloys can endure a strain value of about 10%; but this is when the metals are reduced to micro or nano scales. When these metals are in their bulk shape, as they are for most practical engineering applications, the elastic strain plunges to below 1%. Stainless steel, for example, has an elastic strain of <0.2%.

Led by Sheng Xu, specially appointed assistant professor at Tohoku University's Graduate School of Engineering, the group's bulk copper-based alloy demonstrated a tensile elastic strain of >4.3% at room temperature, thanks to the reversible lattice strain of the BCC single phase.

The elastic softening behavior exhibited by the material meant that the relationship between tensile stress and strain was not linear, meaning it did not follow traditional Hooke's law behavior.

Hooke's law is a theory of elasticity, generalizing that the elasticity of an object is proportional to the stress applied. To get a large elastic strain, a low Young's modulus, essentially the number that reveals how easily a material can stretch and deform, and high strength is needed. But in conventional metallic materials, there is a trade-off between these properties.

Nevertheless, the new material uniquely displayed a low Young's modulus of <25GPa and a large Poisson's ratio of 0.47. In other words, the material is highly elastic, even when exposed to small amounts of stress, and remarkably strong.

Moreover, preparing the bulk single crystals of the alloy requires a cyclic heat treatment, a simple process that enables it to be mass produced.

"Our bulk alloy can be used as spring materials with high recoverability, and they could also be applied to devices that employ strain-mediated sensors, such as stretchable electronics" says Xu. "The new alloy's low Young's modulus resembles human bones and therefore has the potential for use in medical applications."

Details of the research were published in the journal Nature Communication on September 27, 2022.

Looking ahead, the research group hopes to conduct tests on the functional fatigue of large elastic deformations on the alloy, something fundamental for its practical applications. They are also collaborating with relevant industries to explore more application possibilities of the alloy.

The tensile stress-strain curves of the new alloy obtained by loading-unloading tests at room temperature. A large elastic strain and a low Young's modulus of the alloy can be identified.

Published: 28 Nov 2022


Contact details:

Public Relations Division

Tohoku University Public Relations Division 2-1-1, Katahira, Aoba-ku, Sendai, 980-8577

News topics:
Academic discipline:
Content type:

Title: Non-Hookean large elastic deformation in bull crystalline metals
Authors: Sheng Xu, Takumi Odaira, Shunsuke Sato, Xiao Xu, Toshihiro Omori, Stefanus Harjo, Takuro Kawasaki, Hanuš Seiner, Kristýna Zoubková, Yasukazu Murakami, Ryosuke Kainuma
Journal: Nature Communications
DOI: 10.1038/s41467-022-32930-9
