Capturing hidden light waves with quantum dots: An ultrathin layer of quantum dots acts as a light-emitting reporter, revealing invisible surface plasmon polaritons traveling along a metal–dielectric interface. The technique enables researchers to image and measure the waves with a conventional fluorescence microscope, even beneath protective dielectric coatings.
Photographs can reveal things that are otherwise impossible for the naked eye to see, be they distant galaxies or microscopic cells.
Researchers at Osaka Metropolitan University have developed a practical and versatile imaging technique that makes another usually invisible phenomenon visible: surface plasmon polaritons (SPPs), light waves that travel along metal surfaces. The new method could boost the development of next-generation optical and plasmonic technologies.
SPPs are electromagnetic waves that travel along the boundary between a metal and a dielectric material, such as air or glass. Unlike ordinary light, which spreads freely through three-dimensional space, SPPs remain tightly confined to this interface, allowing them to be guided and manipulated at the nanoscale. This unique property makes them fundamental to emerging technologies including ultrasensitive sensors, optical circuits, and quantum devices.
However, the propagation of SPPs has proven tricky to comprehend.
“Directly visualizing and characterizing their propagation, especially under realistic conditions and within complex or buried structures, has remained challenging,” said Masahiro Shibuta, associate professor at Osaka Metropolitan University’s Graduate School of Engineering and lead author of this study.
Aiming to capture images of the waves, the team turned to something equally difficult to visualize: quantum dots—semiconducting nanoparticles that emit light. When the researchers coated a metal surface with an ultrathin layer of fluorescent quantum dots, they created sensitizers. Sensitizers are materials that absorb light efficiently and transfer the resulting charge to another material. Using the nanoparticles, they created ones that were capable of revealing SPPs in both space and time.

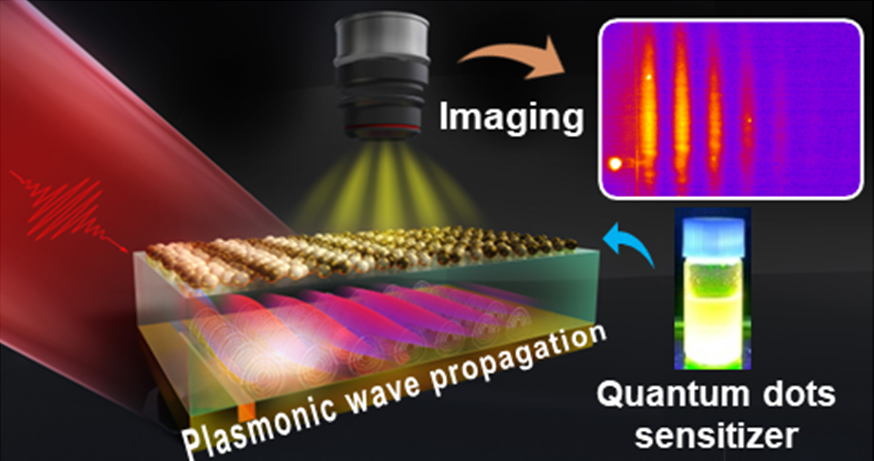

When a near-infrared femtosecond laser generated SPPs on the coated surface, the waves excited the quantum dots, causing them to emit upconversion fluorescence, in which multiple low-energy photons are converted into a single higher-energy photon. The resulting glow formed a series of bright and dark fringe patterns that traced the movement of the otherwise invisible SPPs, allowing them to be imaged with a conventional optical microscope under normal laboratory conditions.
“This method allows SPPs to be observed under ambient conditions, including at buried interfaces,and enables precise evaluation of their wave properties from optical images,” Shibuta said.
By extending SPP imaging to interfaces buried beneath relatively thick dielectric coatings, the technique overcomes a major limitation of previous methods, which typically require exposed metal surfaces. This broadens its applicability to practical plasmonic devices.
Beyond making the waves visible, this method also enables quantitative analysis. Examining the fluorescence fringe patterns and time-resolved images, the researchers could measure how dielectric films influence SPP propagation, including changes in wave velocity and dispersion. The experimental results closely matched theoretical predictions.
The team also discovered that the plasmonic behavior depended on the number of quantum-dot layers deposited on the surface. This allowed them to determine the dielectric constant of the photofunctional layers themselves, demonstrating that the method can characterize not only SPPs but also the optical properties of functional nanomaterials integrated into plasmonic devices.
“Our technique provides a powerful and accessible way to directly ‘see’ plasmonic waves, opening new possibilities for both fundamental studies and the design of advanced plasmonic devices,” Shibuta said.
The researchers plan next to extend the method to increasingly complex plasmonic and photonic systems.
“Our ultimate goal is to establish a standard, broadly applicable platform for visualizing and controlling plasmonic phenomena, which will accelerate the development of next-generation nanophotonic and optoelectronic devices and deepen our understanding of light–matter interactions at the nanoscale,” Shibuta said.
The study was published in Nano Letters.
