Measuring unconventionality

Interference patterns made by wave-like electrons reveal that tiny atomic magnets are critical to iron-based superconductors

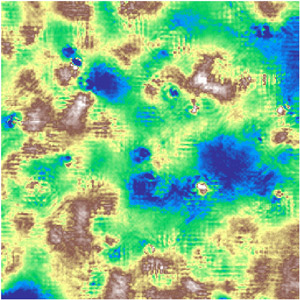

An image of the interference pattern made by wave-like electron pairs in a high-temperature, iron-based superconductor as measured using a phase-sensitive scanning tunneling microscope.

Achieving superconductivity at room temperature has represented one of the holy grails of physics for decades. A practical material with zero electrical resistance would not only represent a major advance in physics, but also revolutionize technologies from power grids to electric motors. However, the mechanism behind so-called ‘high-temperature’ superconductors, which are superconducting above approximately -240 Celsius, has been unclear, and the highest temperature at which superconductivity has been observed remains at a frigid -108 Celsius.

Now, the mechanism responsible for superconductivity in an important class of high-temperature superconducting materials, discovered in 2008, has been revealed by Tetsuo Hanaguri and colleagues at the RIKEN Advanced Science Institute, the Japan Science and Technology Agency (JST), The University of Electro-Communications in Tokyo, and The University of Tokyo1.

Pairing up

The researchers studied the mechanism behind a key property of all superconductors: electron pairing. In an ordinary material, electrons travel independently and their motion is regularly disrupted, or scattered, by defects and by vibrations (or phonons) of the atomic lattice they are traveling through. This leads to electrical resistance, so that any flowing current must be ‘pushed’ along by an applied voltage. In superconductors, electrons travel in pairs, rather than individually, making them less prone to scattering. A minimum amount of energy called the ‘superconducting gap’ energy must then be expended to break an electron pair. Since this energy is unavailable at low temperatures, the motion of the electron pairs remains unperturbed, and the material’s resistance is zero. This means a current can flow perpetually without any applied voltage.

Hanaguri and colleagues focused on understanding how electron pairing occurs in iron-based superconductors, one of the two major classes of high-temperature superconductors. In conventional, low-temperature superconductors, electrons are paired because phonons create attractions between them, overcoming the natural repulsion the electrons have as a result of their identical negative charges. In iron-based superconductors, however, superconductivity is associated with a particular ordering of the atomic magnets found in the materials. This generated speculation among physicists that these tiny magnets, or spins, may be involved in the pairing mechanism. The work by Hanaguri and colleagues provides strong evidence that these spins are indeed responsible for electron pairing in iron-based superconductors.

Out of phase

The researchers leveraged their expertise with scanning tunneling microscopes (STMs) to gather this evidence. Traditionally used to map the shapes of nanostructures and atoms, these microscopes measure the current between a sharp nanoscale tip and a surface just beneath it. They can also be used to measure the momentum of electrons traveling across a surface. Just before the discovery of iron-based superconductors, Hanaguri had developed a method at RIKEN in Hidenori Takagi’s laboratory to use STMs to measure the phase of electrons, and this capability was the key to their work on superconductors.

Hanaguri and colleagues were able to measure the interference pattern of electron pairs by purposefully scattering them from magnetic vortices that they created in the superconductor Fe(Se,Te) using an applied magnetic field. Electron pairs behave like waves at very small scales so, like all waves, they have a phase. For example, two water waves traveling across a pond at the same speed have different phases if one wave is slightly behind the other. If they collide, they make an interference pattern that is affected by the phase difference between them. Similarly, the interference pattern made by electron pairs is affected by the phase difference between those pairs.

The researchers measured and interpreted these interference patterns to understand iron-based superconductors. After initial measurements on high-quality crystals grown by their collaborator Seiji Niitaka, they began the task of data interpretation. Unfortunately, they made an early mistake with the coordinate system that stymied their progress until Kazuhiko Kuroki from The University of Electro-Communications realized the error at a presentation. Kuroki later joined the collaboration and helped interpret the measured interference patterns.

The team found that the patterns could be explained by assuming that the phase of an electron pair, and its associated superconducting gap, depends on the momentum of the pair (Fig. 2). This telltale sign of spin-mediated electron pairing had been predicted theoretically but never realized experimentally. By confirming the role of spins in iron-based superconductors, the team’s data lay the foundation for an understanding of superconductivity that is not based on lattice vibrations unlike more conventional superconductors.

Past and future

Hanaguri says his group was in a lucky position at the outset. “My ‘aha!’ moment came when I realized that the phase-sensitive STM technique that I had already developed could be applied to iron superconductors, which had just been discovered.” He also counts openness as a key to the success of the work: had Hanaguri not comprehensively described his preliminary results at a conference, Kuroki would not have identified his mistake. “My policy is that all the data, techniques and plans that I have must be as open as possible,” Hanaguri says.

Hanaguri also notes that the phase-sensitive scanning tunneling microscope developed by his team yielded a significant result in only its first years of operation, and can be expected to produce important results in other realms of physics, including magnetism. Ultimately, Hanaguri would be most satisfied by finding something completely new. “Our equipment is capable of studying matter under extreme conditions, and it is under extreme conditions that many new physical phenomena have been discovered,” he explains. “To discover a new phenomenon would be much more exciting than the elucidation of an existing phenomenon’s mechanism.”

About the Researcher

Tetsuo Hanaguri

Tetsuo Hanaguri was born in Tokyo, Japan, in 1965. He graduated from the Department of Applied Physics at Tohoku University in 1988, and received his PhD in applied physics from the same university in 1993. He then worked as a research associate and associate professor at The University of Tokyo until he joined RIKEN. Since 2004, he has held the position of senior research scientist in the Takagi Magnetic Materials Laboratory at RIKEN. He works in the field of experimental condensed-matter physics at low temperatures, and his current research focus is on spectroscopic imaging scanning tunneling microscopy of complex electron systems including superconductors and topological insulators. He is also interested in measurement science and technology and enjoys building scientific apparatus.

Image Name

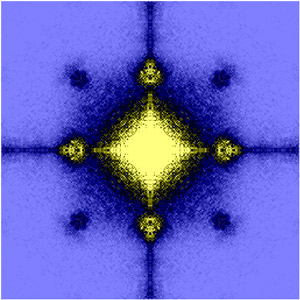

An image of the interference pattern shown in Fig. 1 that has been converted numerically from real space (with axes representing left/right and up/down) to momentum space, pictured here (with axes representing momentum to the left/right and up/down). This alternate view of the interference data yields information about how electron scattering depends on electron momentum.

Published: 02 Jul 2010

Institution:

Contact details:

2-1, Hirosawa, Wako, 351-0198

+81-48-462-1225
Country:
Journal:
News topics:
Content type:
Collaborator:
Reference:

1. Hanaguri, T., Niitaka, S., Kuroki, K., Takagi, H. Unconventional s-wave superconductivity in Fe(Se,Te). Science 328, 474–476 (2010).
